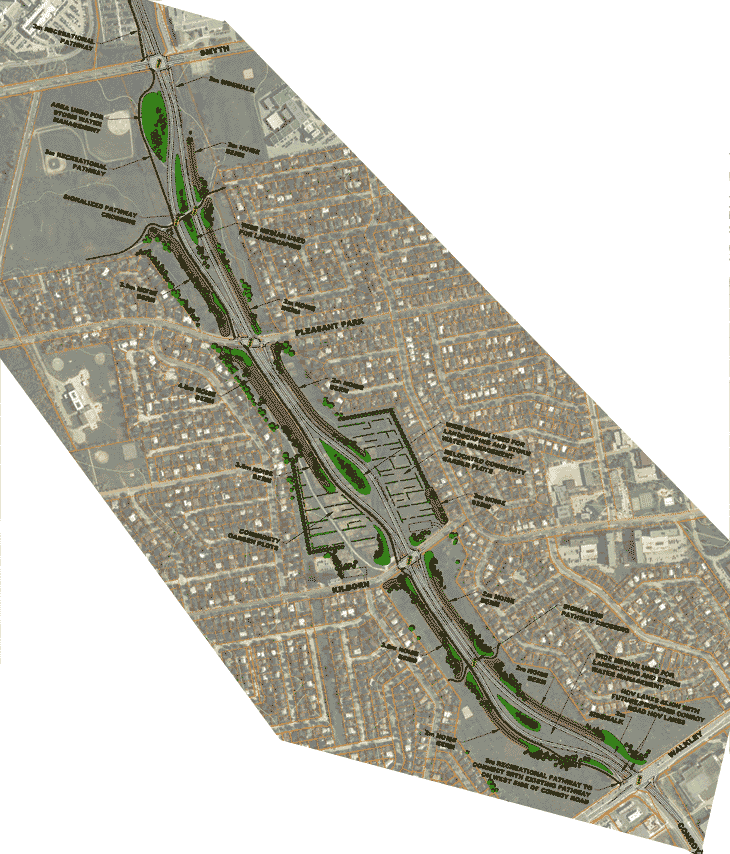

Below are the plans for a 4-lane road from Smyth (top) to Walkley & Conroy (bottom). Detailed plans are also available for:
- Nicholas/Lees Section - northern end from the 417 interchange to the bridge over the Rideau River.
- Riverside Section - from the Rideau River to Alta Vista Drive.
- Central Section - from Alta Vista to Smyth with access to the Hospital.
- Example of intersection design for cross streets.
